TX9
9000L Offroad Tanker
9,000L dominance for large-scale suppression

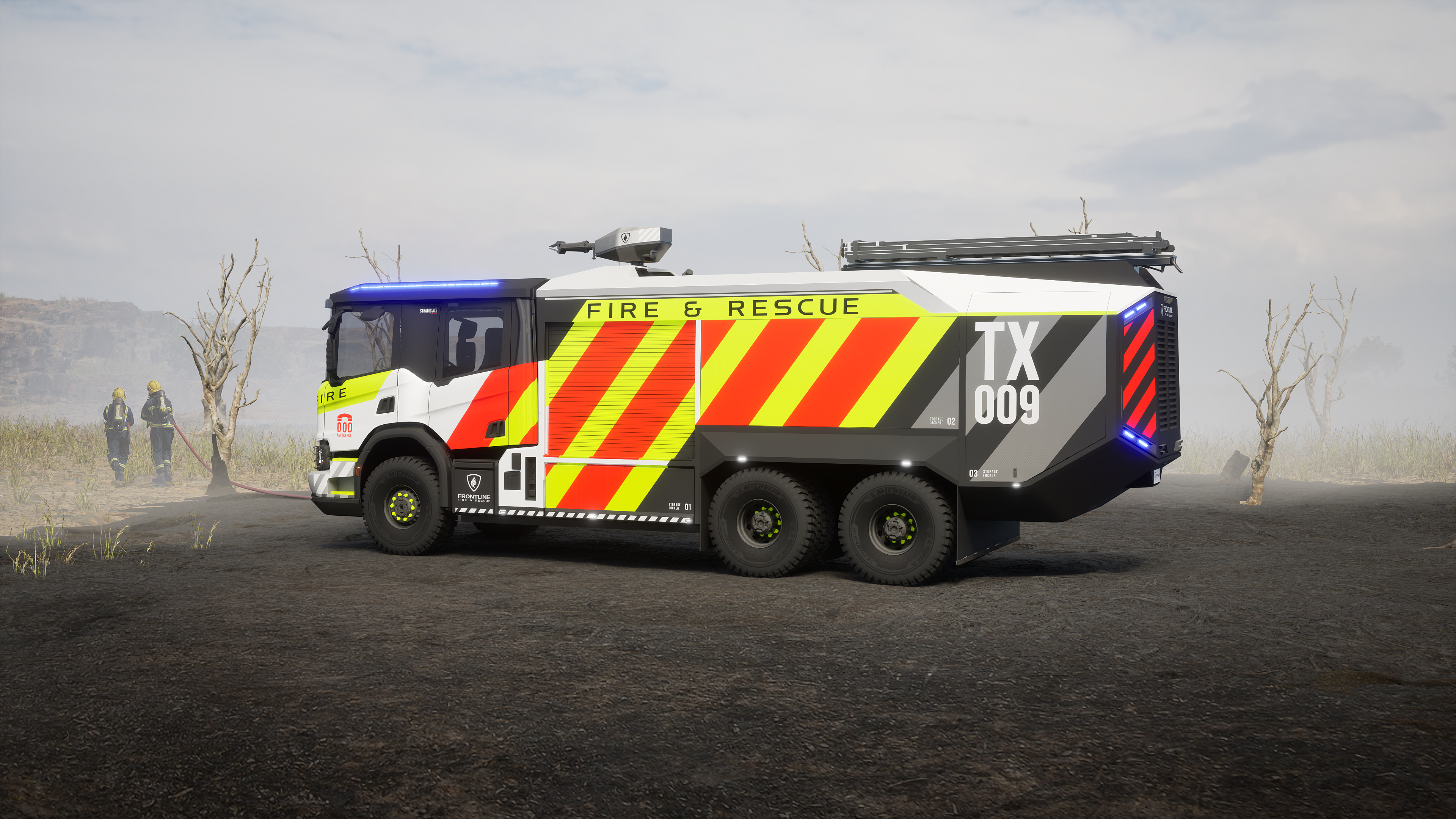

The Terra Firma TX9 is the ultimate offroad firefighting tanker, carrying a formidable 9,000 litres of water combined with a high-output pump and roof-mounted monitor. Engineered for extreme approach and departure angles, reinforced chassis strength, and advanced stability systems, it conquers the most punishing terrain while fully loaded. Designed for large-scale bushfire lines and high-risk mining operations, it delivers overwhelming suppression force and sustained performance in the harshest conditions. Crew safety and comfort are safeguarded by advanced protection systems and ergonomic design. When the fireground demands maximum capacity and unstoppable resilience, the TX9 is the tanker built to answer.
Pump Output
4,500 LPM @ 10 Bar
Water Tank
8,500L
Crew
Crew or Single Cab
- Pump Output – 4,500 LPM @ 10 Bar
- Water Tank – 8,500L
- Crew Cab – Crew or Single Cab
- GVM – 33,000kg
- Foam Tanks – A: 200L, B: 1,000L
- Drive Configuration – 6x6
- Foam System – A: FRC TurboFoam Direct Injection, B: FRC AutoFoam Around the Pump
- Hose Reels – 60m x 25mm Stabilo Hose
- Monitor – Akron Trident Roof Monitor and TFT Bumper Monitor
- CANBUS – CANBUS integration, GPS live tracking
- Lighting – LED Compartment, Scene & Emergency Lights
- Warning & Siren – Code 3 emergency warning, lighting and siren system
- Body – FRX-Core
- Shelving – ModuLock™ Fully Adjustable System
- Doors – Roller Shutters
- Crew Protection – Burnover Blankets, Radiant Heat Shields, In cab air self rescue units and optional Gas Detection System
- ROPS/FOPS – Optional ROPS/FOPS
- Crew Comfort – OEM Cabin Air Conditioning, USB Charging with optional onboard fridge
